SPECS
SKU
EXL-TRX15.4D
Nominal Diameter
15″ / 381mm
Nominal Impedance
4+4 ohms
RMS Power Handling
3000W
MAX Power Handling
6000W
Sensitivity (1w/1m)
86dB
Frequency Response
10-400 Hz
Recommended Lo Pass Crossover
120 Hz
Features
Demodulating Rings
No
Improved Heat Dissipation
Yes
Cone Shape
Curvilinear
Speaker Terminals
Push 6ga
Motor
Voice Coil Diameter
4″ / 99.8mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Non-Pressed Paper + Epoxy Coating
Dust Cap Material
PPI
Surround Material
Foam
Spider Diameter
8.5″ / 215mm
Leads Connection Type
Crossed Spider
Basket Material
Aluminum
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
3 x 98.3 Oz (295 Oz)
Displacement Volume
3.1L / 0.109ft3
Thiele & Small Parameters
Equivalent Volume Vas
33.9L / 1.197ft3
Excursion (one way) Xmax
25 mm
Free Air Resonance Fs
50 Hz
Mechanical Factor Qms
4.714
Electrical Factor Qes
0.855
Total Factor Qts
0.724
Moving Mass Mms
394.006 g
Compliance Cms
0.0343u m/N
Bl Factor BI
29.243
Voice Coil Inductance Le
9.04 mH
Diaphragm Area Sd
844.960 cm2
Dc Resistance Re
3.6+3.6 ohms
Efficiency Bandwidth Product EBP
49
Recommended Enclosures
Sealed Internal Volume
35.4L / 1.25ft3
Sealed Box Output Response
45Hz
Ported Internal Volume
70.8L / 2.5ft3
Port Size *Square (WxHxLong)
2.47″x15″x37″ / 62.7x381x939.8mm
Port Tunning Frequency
30Hz
Ported Box Output Response
26.5Hz

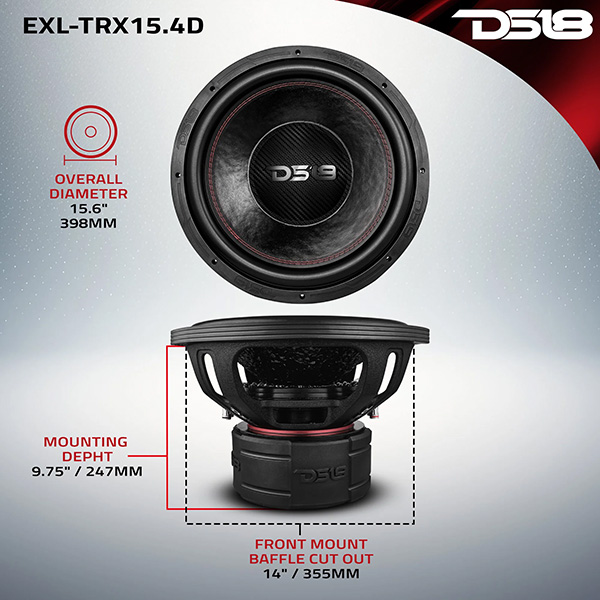

Measurement
Overall Diameter
15.6″ / 398mm
Overall Depth
11.5 / 293mm
Front Mount Baffle Cutout
14″ / 355mm
Mounting Depth
9.75″ / 247mm
Motor Diameter
9.1″ / 232mm

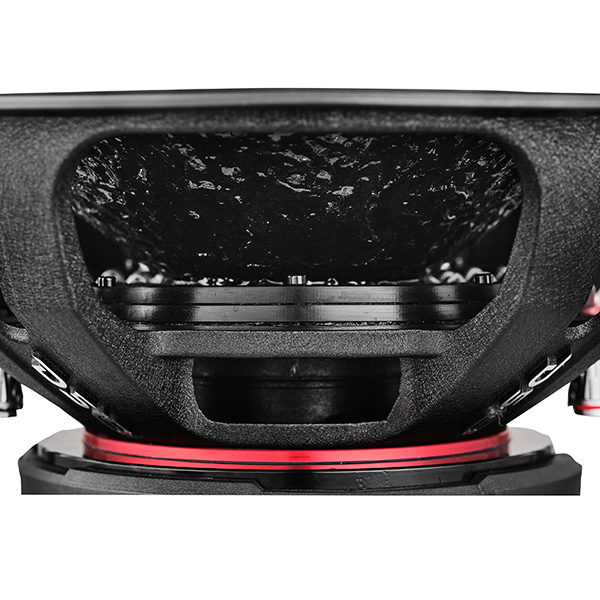

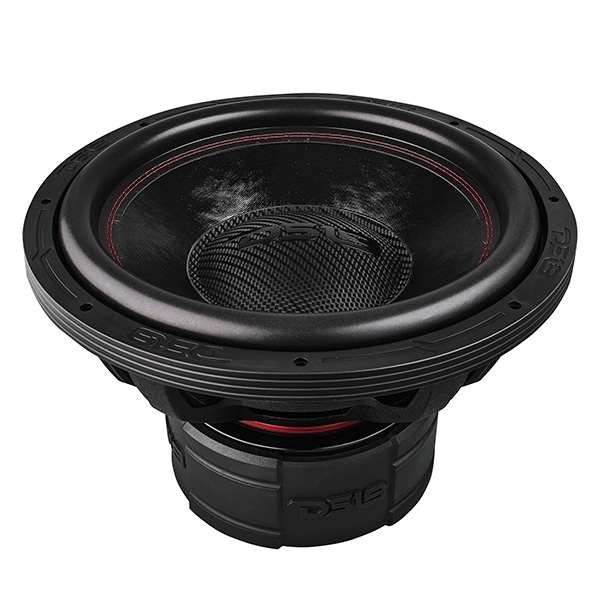

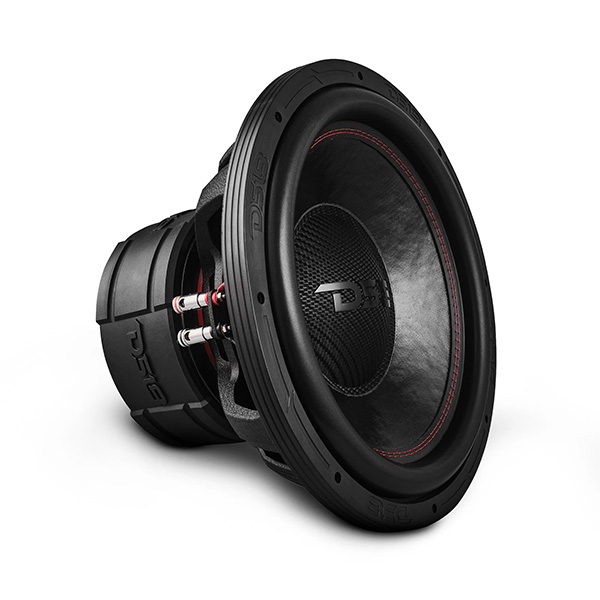

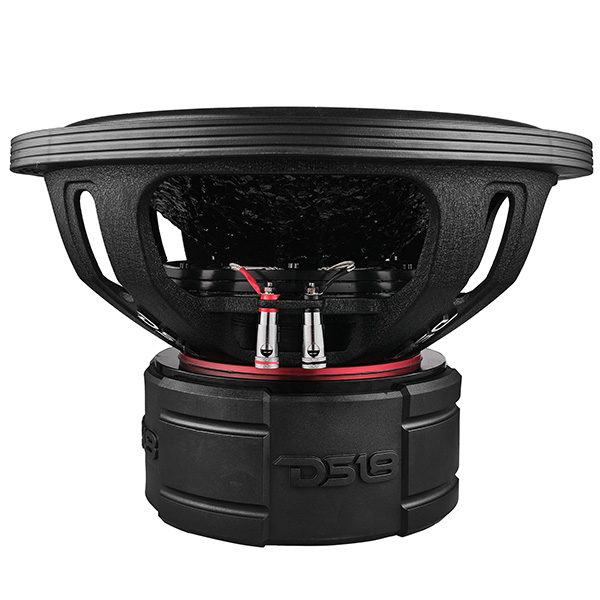

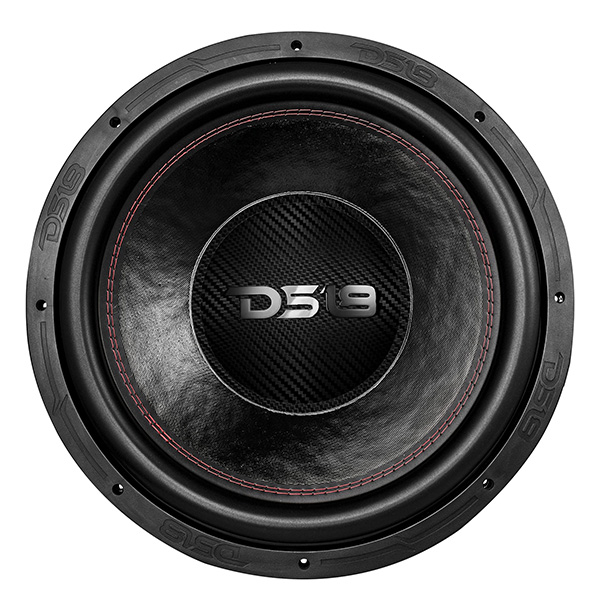

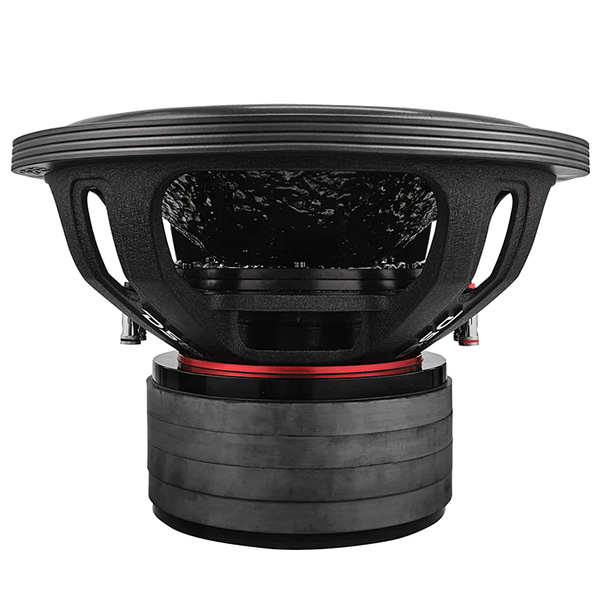

DS18 EXL-TRX15.4D
Shake any venue with the EXL-TRX15.4D, a 15” subwoofer designed for epic bass frequencies. Transform your setup with deep, thunderous bass and an instant boost in sound quality from this subwoofer.
The EXL-TRX15.4D delivers massive power with ratings of 6000W MAX and 3000W RMS for ground-shaking bass that instantly boosts your system’s quality. Its advanced thermal management systems ensures consistent performance, even during intense listening sessions. The reinforced non-pressed paper cone with epoxy coating provides unmatched durability, while the dual 4″ voice coils optimize your subwoofer’s sound reproduction.
Engineered to dominate, the EXL-TRX15.4D is made for stunt walls and turbo boxes: but, is versatile enough to fit into both sealed (1.25 ft³) and ported (2.5 ft³) enclosures. It’s 4-ohm impedance and 86dB sensitivity allows the EXL-TRX15.4D converts power into high-impact bass easily. Feel the thunder across a perfect frequency response range of 10 – 400 Hz for a full-bodied audio experience.
The EXL-TRX15.4D is perfect for car audio enthusiasts, competition sound system builders, and anyone who wants concert-like bass in their vehicle. Its robust construction, featuring an aluminum basket and ferrite magnet, ensures long-lasting performance even under intense use.
Upgrade with the EXL-TRX15.4D today and experience bass like never before.
Fast free shipping
30-days returns
2 year warranty
Secure payment
EXL 15” Subwoofer Quad Stack with Reinforced Cone 3000 Watts RMS 4” Dvc 4-Ohm
Key Features
- 15″ Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 3000 Watts
- Impedance: 4 OHM DVC
- Quad Stacked Ferrite Magnets ~ 86dB
- Improved Heat Dissipation ~ Reinforced Cone
