SPECS
SKU
EXL-TR12.4D
Nominal Diameter
12″ / 305mm
Nominal Impedance
4+4 ohms
RMS Power Handling
1500W
MAX Power Handling
3000W
Sensitivity (1w/1m)
82dB
Frequency Response
10-500 Hz
Recommended Lo Pass Crossover
120 Hz
Features
Demodulating Rings
No
Improved Heat Dissipation
Yes
Cone Shape
Curvilinear
Speaker Terminals
Push 6ga
Motor
Voice Coil Diameter
3″ / 76.5mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Non-Pressed Paper + Epoxy Coating
Dust Cap Material
PPI
Surround Material
Foam
Spider Diameter
8.5″ / 215mm
Leads Connection Type
Crossed Spider
Basket Material
Aluminum
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
2 x 85 Oz (170 Oz)
Displacement Volume
3.2L / 0.113ft3
Thiele & Small Parameters
Equivalent Volume Vas
12.36L / 0.436ft3
Excursion (one way) Xmax
17.5 mm
Free Air Resonance Fs
45 Hz
Mechanical Factor Qms
5.839
Electrical Factor Qes
1.254
Total Factor Qts
1.032
Moving Mass Mms
385.777g
Compliance Cms
30.891u m/N
Bl Factor BI
25.684
Voice Coil Inductance Le
6.03mH
Diaphragm Area Sd
530.929 cm?
Dc Resistance Re
3.7+3.7 ohms
Efficiency Bandwidth Product EBP
65
Recommended Enclosures
Sealed Internal Volume
17L / 0.6ft3
Sealed Box Output Response
41Hz
Ported Internal Volume
42.5L / 1.5ft3
Port Size *Square (WxHxLong)
1.52″x12.28″x31.82″ / 38.5x312x808.2mm
Port Tuning Frequency
30Hz
Ported Box Output Response
25Hz
Measurement
Overall Diameter
12.5″ / 319mm
Overall Depth
9″ / 230mm
Front Mount Baffle Cutout
11.1″ / 282mm
Mounting Depth
7.6″ / 193mm
Motor Diameter
7.5″ / 191mm

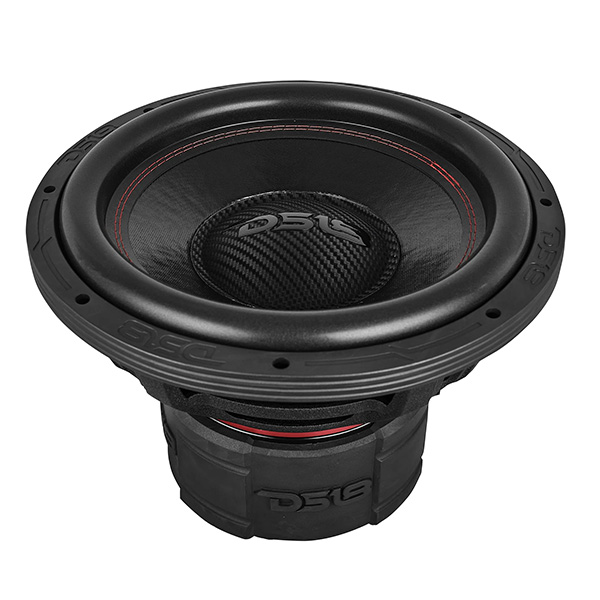

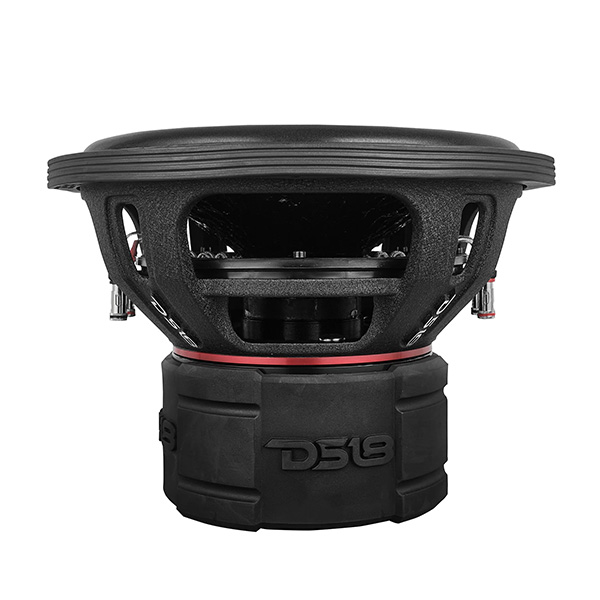

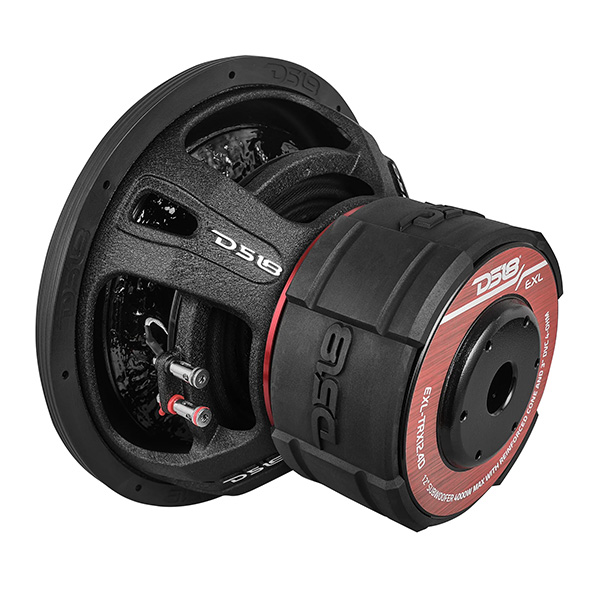

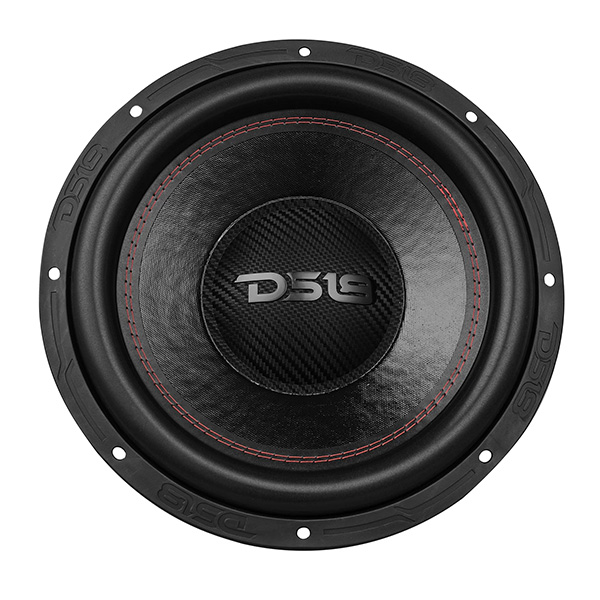

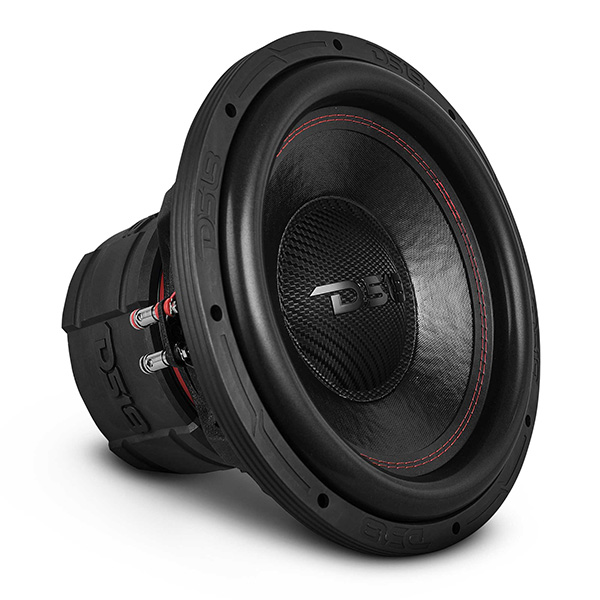

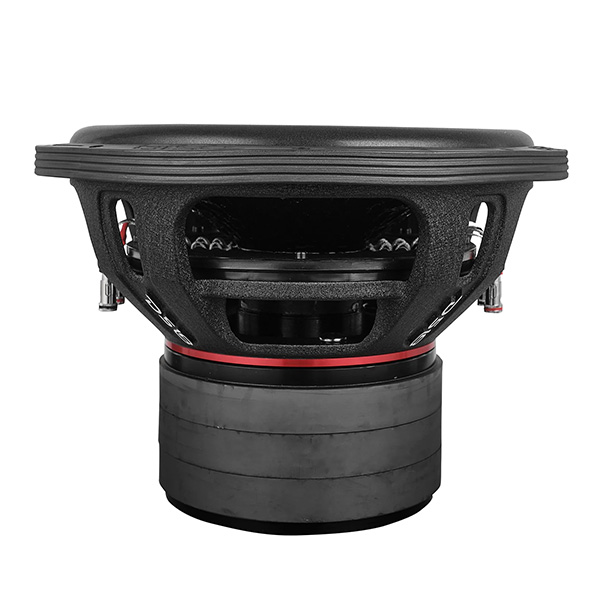

DS18 EXL-TRX12.4D
12″ Subwoofer – 4000W Max with Reinforced Cone and 3″ DVC 4-Ohm
Get the ultimate bass experience with the EXL-TRX12.4D: a high-power 12″ subwoofer engineered to deliver an earth-shattering bass performance. With an astonishing MAX power handling of 4000W and RMS power handling of 2000W, this subwoofer is designed to dominate any car audio setup with deeper, richer bass no one can deny.
Crafted with precision, the EXL-TRX12.4D features a reinforced non-pressed paper cone with an epoxy coating, ensuring durability while maintaining exceptional sound quality. The dual 4-ohm voice coils allow for flexible wiring options, making it easier to reach MAX performance. The black aluminum voice coil former and SV winding material enhance heat dissipation, for high-volume sessions. Feel your music come to life with this subwoofer’s frequency response range that plunges down to an astounding 10 Hz.
The EXL-TRX12.4D comes equipped with a massive triple-stacked ferrite magnet system weighing in at 255 oz, enhancing magnetic control for superior bass reproduction. Its advanced crossed spider lead configuration ensures stable and reliable connections under heavy loads, offering both performance and reliability.
Designed for versatility, the EXL-TRX12.4D excels in both sealed and ported enclosures, allowing you to customize your setup according to your preferences.
Upgrade with the EXL-TRX12.4D and get bass that moves you.
Fast free shipping
30-days returns
2 year warranty
Secure payment
EXL 12” Subwoofer Triple Stack with Reinforced Cone 2000 Watts RMS 4” Dvc 4-Ohm
Key Features
- 12″ Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 4 OHM DVC
- Triple Stacked Ferrite Magnets ~ 84dB
- Improved Heat Dissipation ~ Reinforced Cone
Price
$339.96
