SKU
PRO-TWZ1
Nominal Diameter
3.8″ / 96mm
Nominal Impedance
4 ohms
AES Power Handling
50W
Program Power Handling
100W
Peak Power Handling
200W
Sensitivity (1w/1m)
105 db
Frequency Response
3.15K-20Khz
Recommended Hi Pass Crossover
4KHz
Sold In Pair or Single
Pair
Filter (Bass Blocker)
4.7uf
Body Material
Aluminum
Body Color / Finish
Black
Faceplate Color / Finish
Black / Machined
Bullet Material
Aluminum
Voice Coil Diameter
1″ / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
6.5 Oz

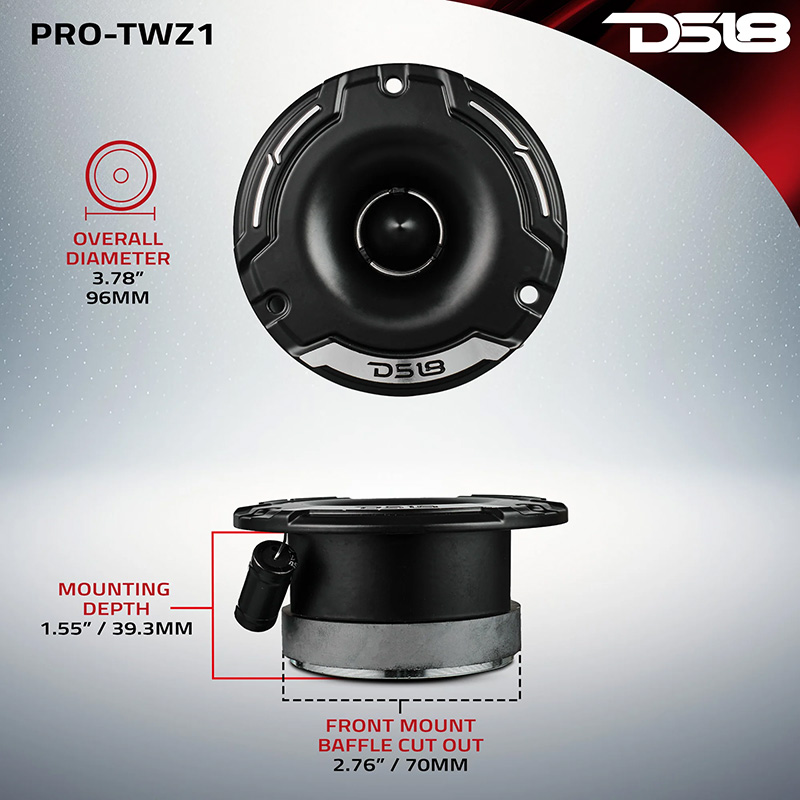

Overall Diameter
3.78″ / 96mm
Overall Depth
1.8″ / 45.8mm
Front Mount Baffle Cutout
2.76″ / 70mm
Mounting Depth
1.55″ / 39.3mm
Motor Diameter
2.76″ / 70mm

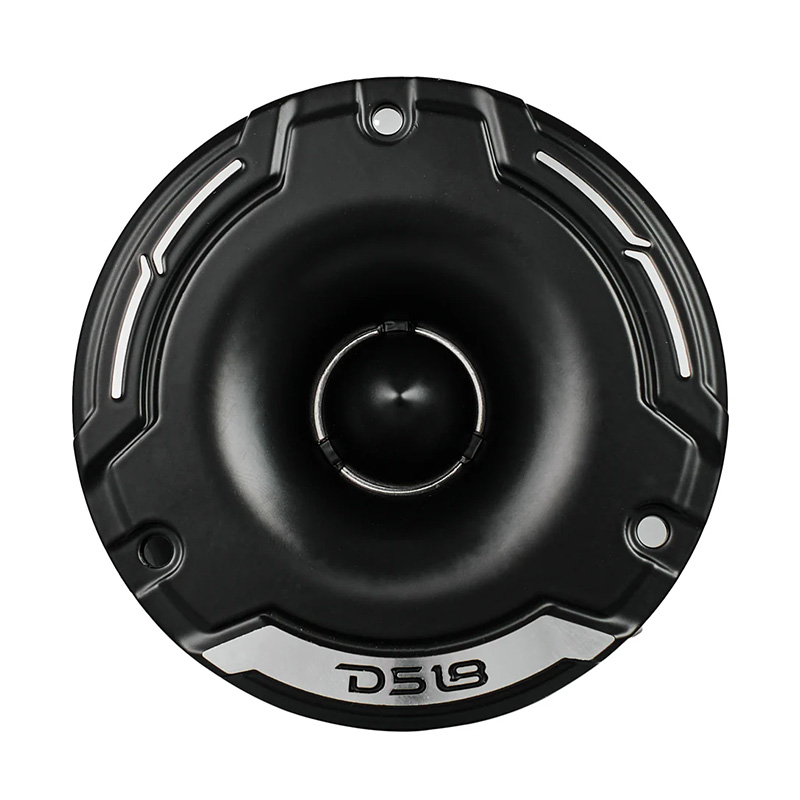

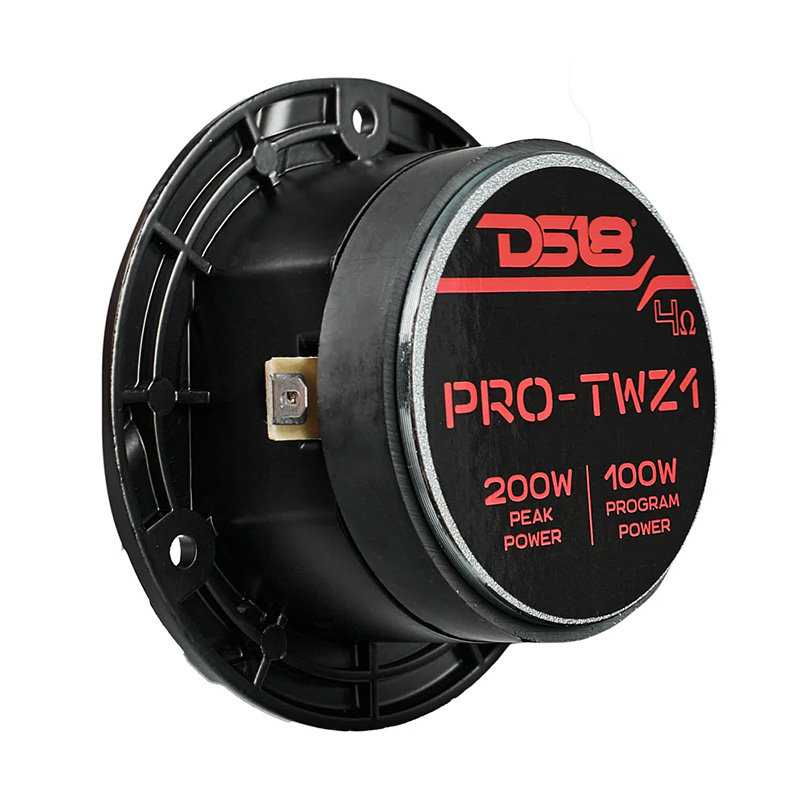

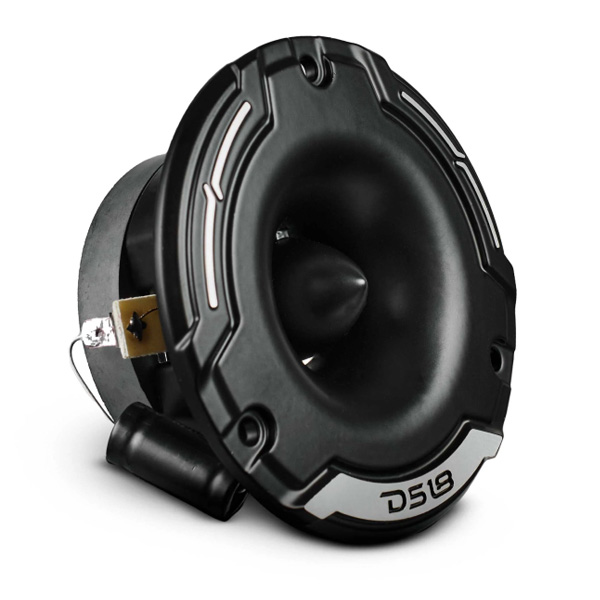

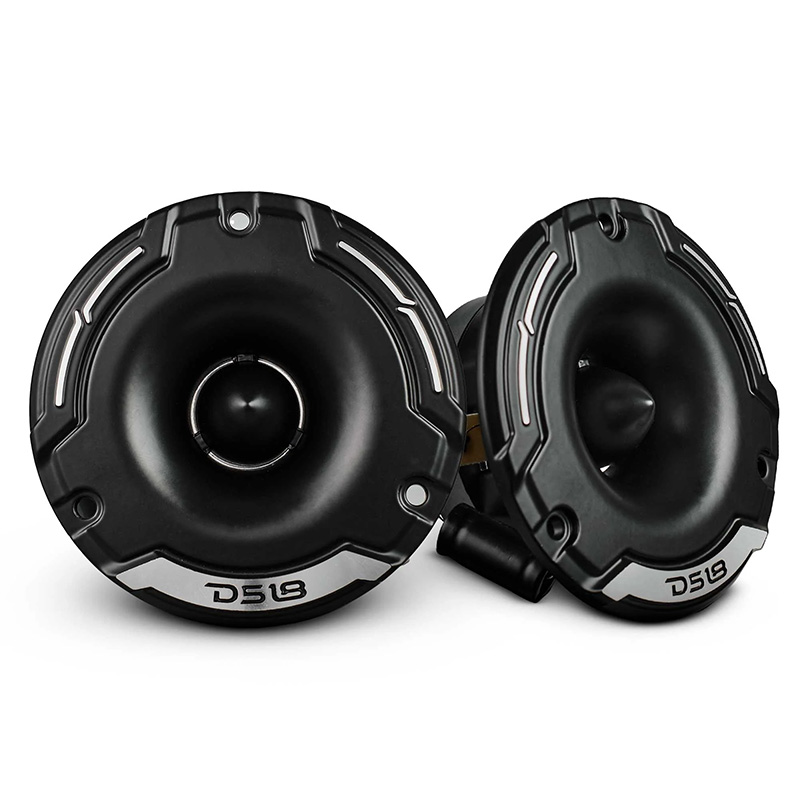

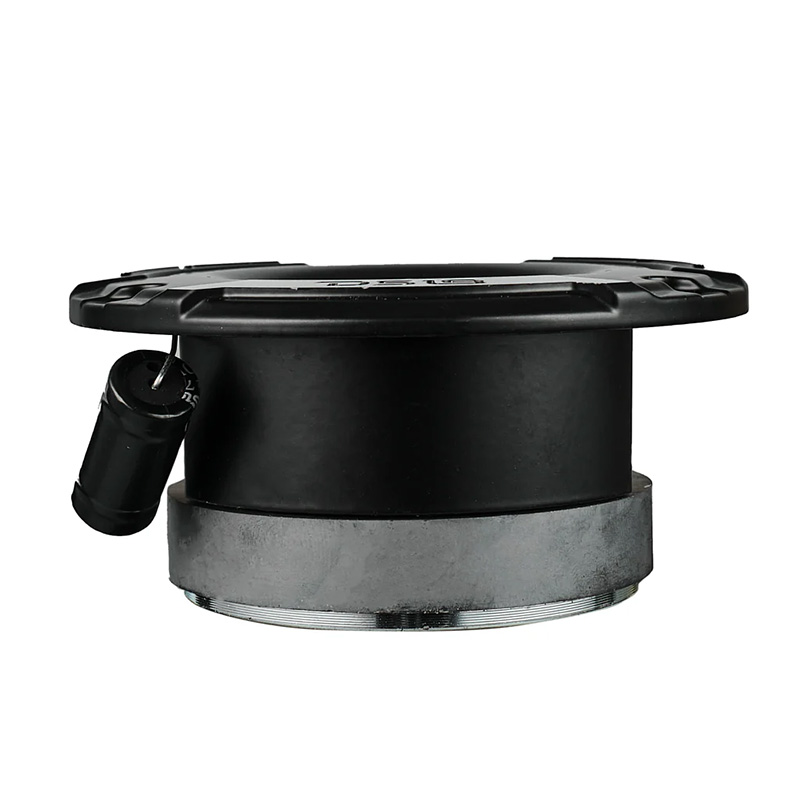

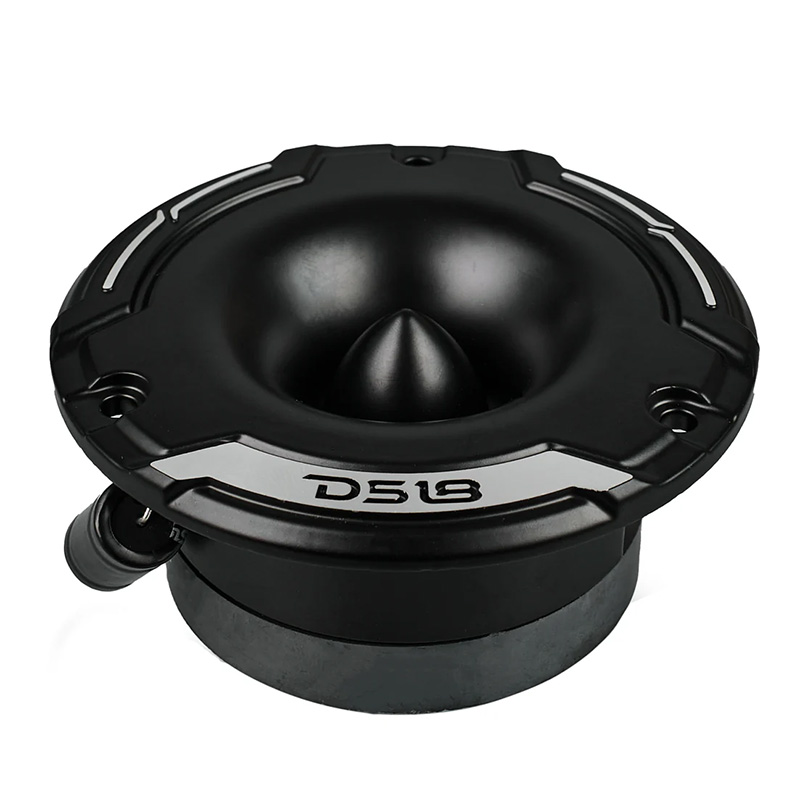

DS18 PRO-TWZ1
3.8″ Super Bullet Compression Tweeter With 1″ Aluminum Voice Coil
Take your audio experience to the next level with DS18’s PRO-TWZ1, a 3.8-inch super bullet compression tweeter designed to dominate. Delivering razor-sharp, crystal-clear treble: the PRO-TWZ1 is sure to captivate both casuals and competitors alike.
Featuring an impressive 105dB sensitivity, the PRO-TWZ1 makes sure every high note cuts through noise effortlessly. Power-packed with a peak handling capacity of 200W, program power handling of 100W, and AES power handling of 50W: this high-performance tweeter is primed to handle intense audio demands without compromising on quality. The built-in bass blocker (tuned at 4.7uf) safeguards against low-frequency interference, ensuring that your highs are pristine.
Its compact aluminum construction and straightforward installation make it a perfect fit for any custom car audio system, delivering dynamic frequencies from 3.15kHz to 20kHz with an aluminum diaphragm and Kapton former voice coil designed to work in perfect harmony.
Fine-tune your competitive rig or upgrade your daily driver with DS18’s PRO-TWZ1!
$41.95
